| Feature | Details |
|---|---|

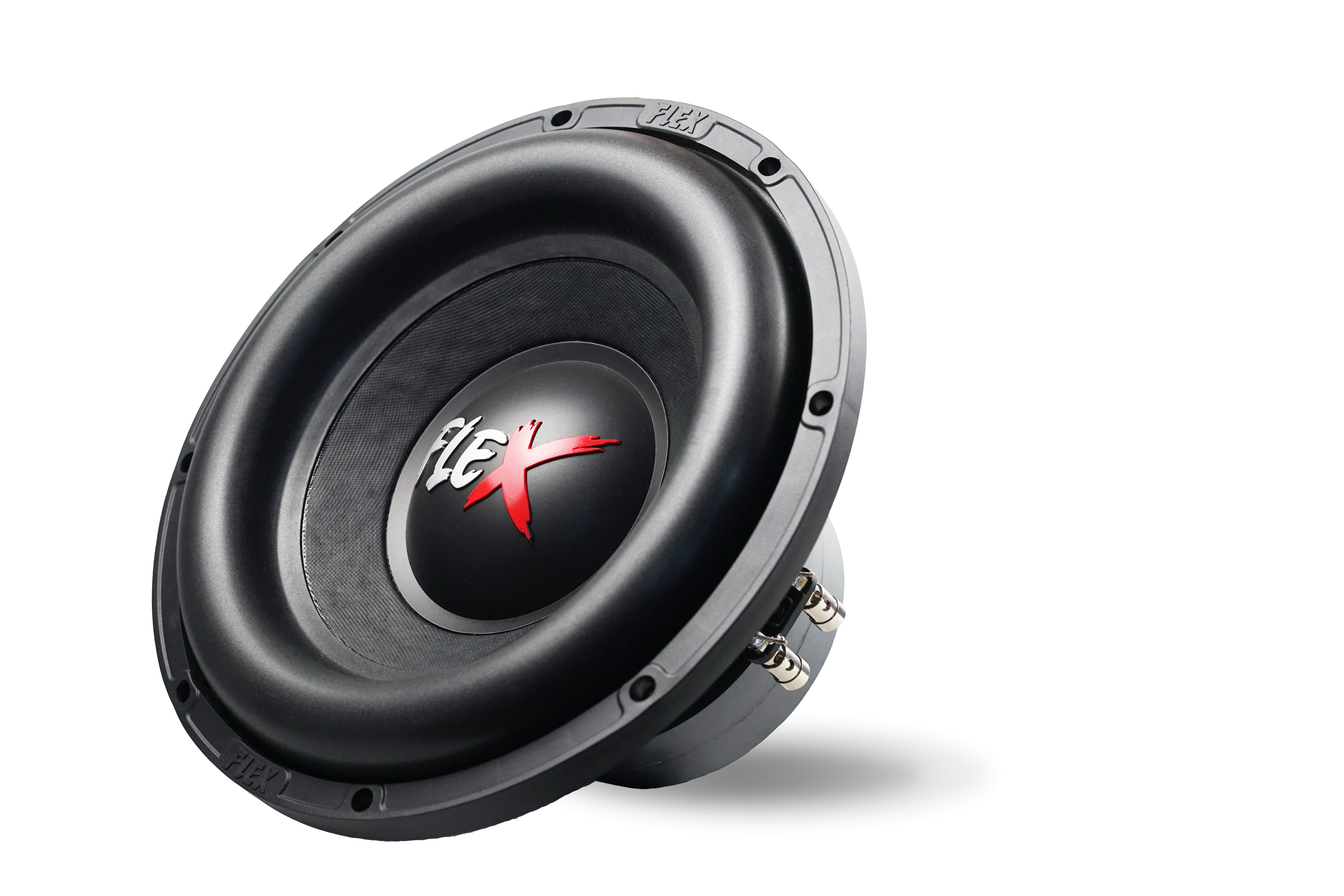

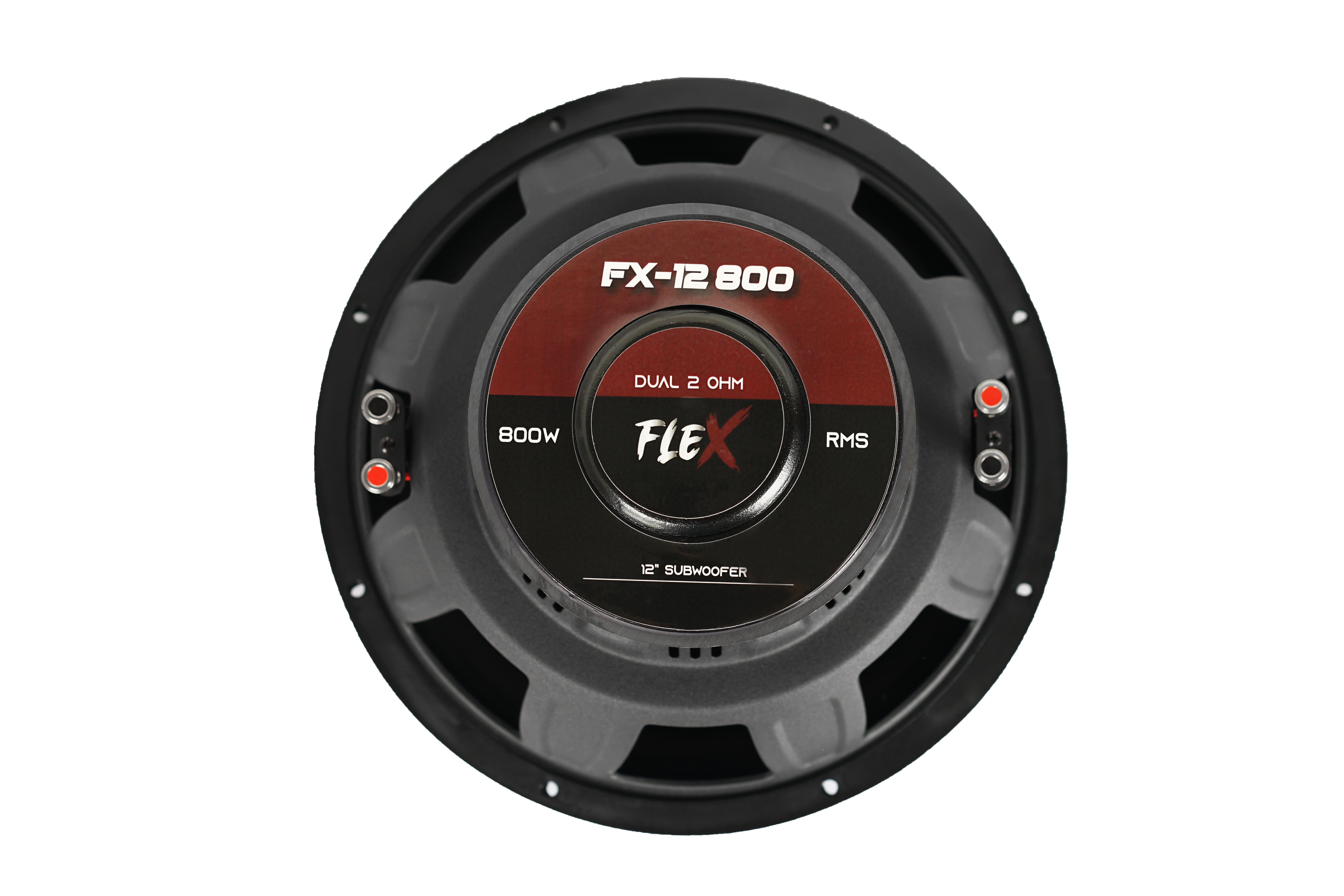

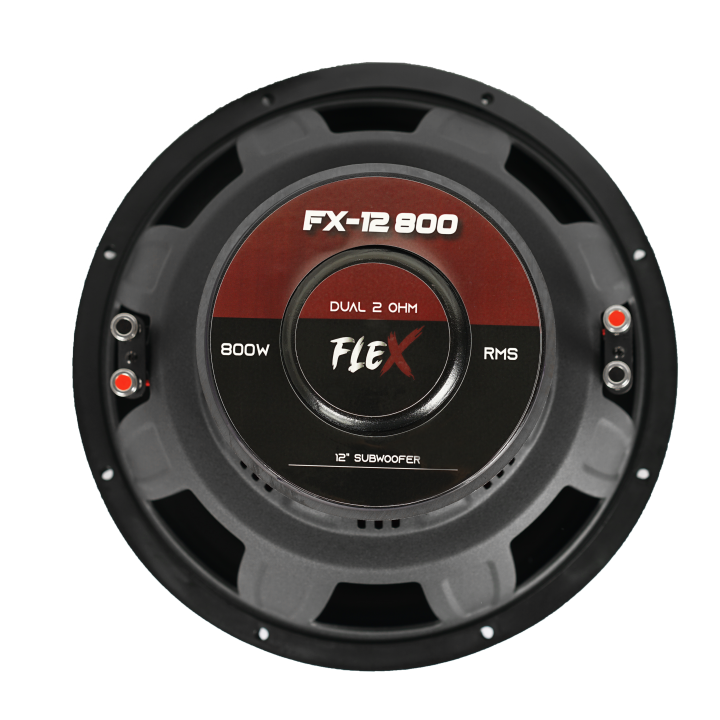

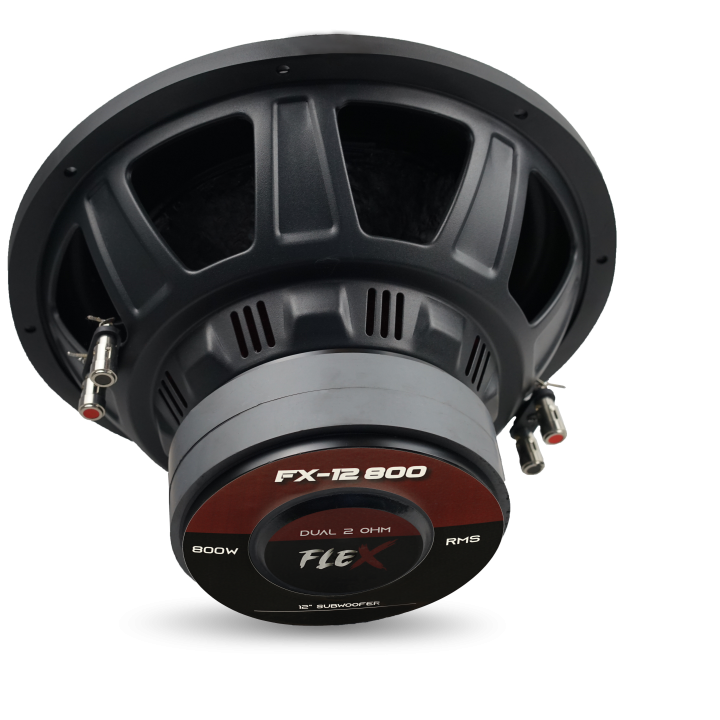

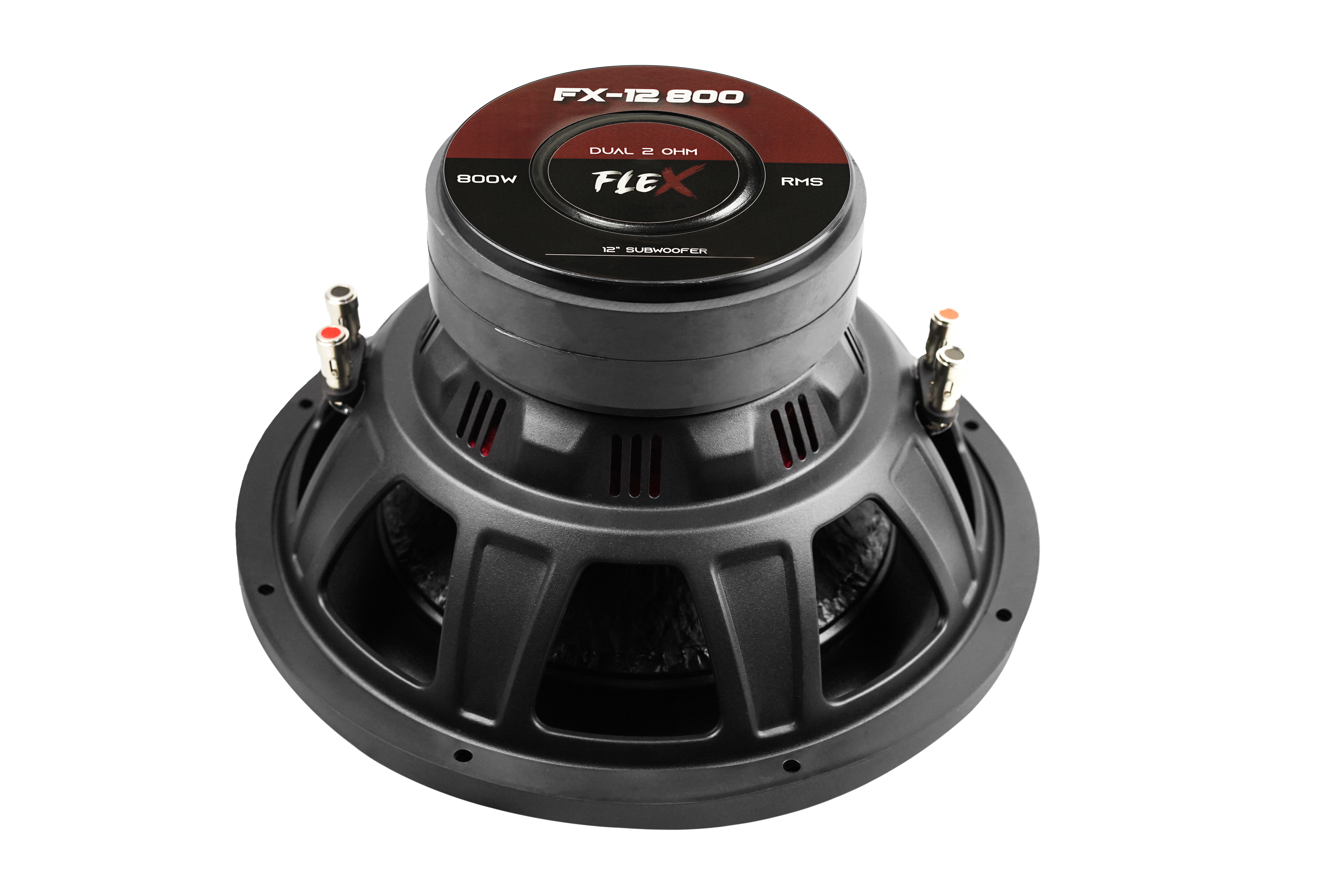

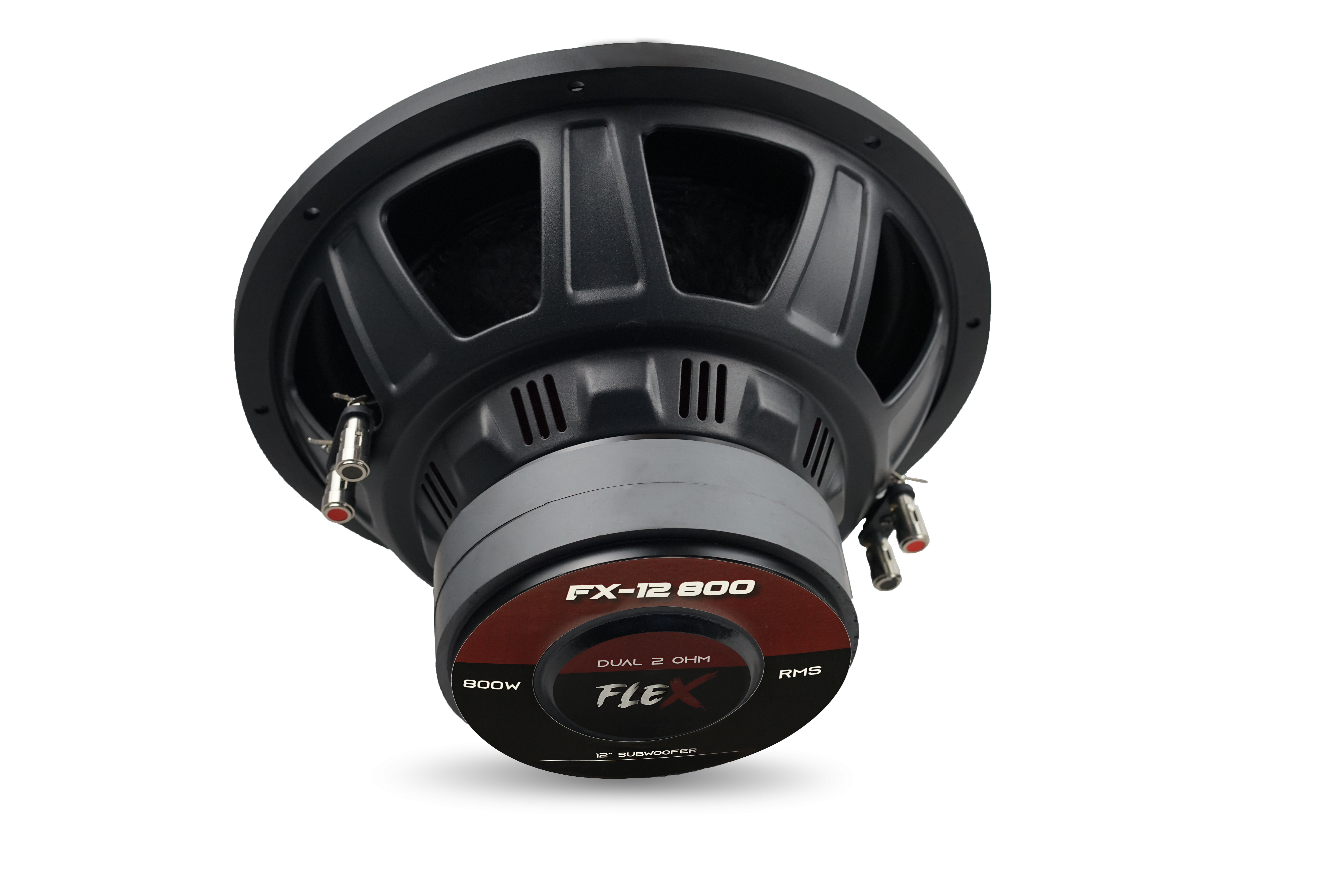

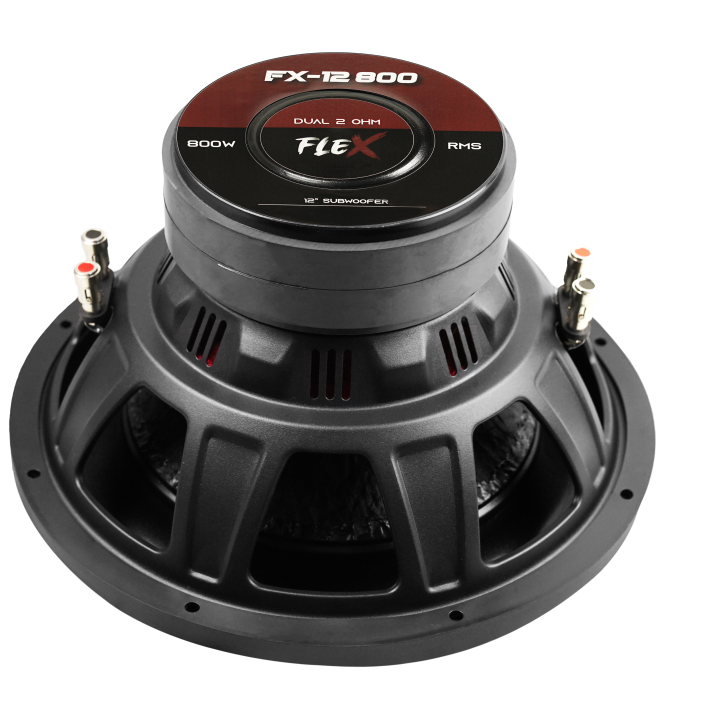

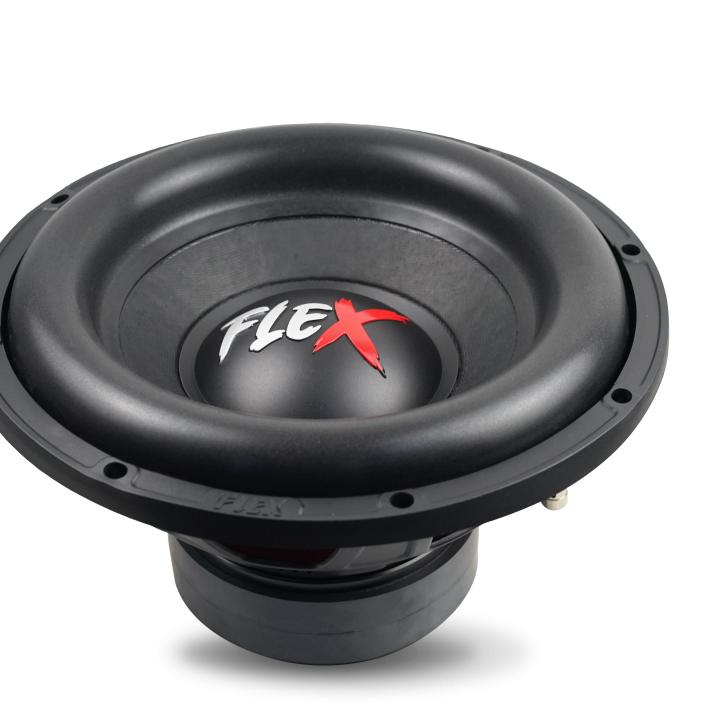

| Model | FX-12 800 D2/D4 |
| Cone Material | Pressed paper |
| Surround Material | Foam |
| Magnet Type | Ferrite |
| Frame Material | Stamped steel |
| Power RMS (Watt) | 800 |
| Power MAX (Watt) | 1600 |
| Size (inch) | 12 |
| Voice Coil Wire | CCAW |
| Voice Coil Size (inch) | 2.5 |
| Parameter | Value |
|---|---|
| Xmax (mm) | 14 |
| Vas (L) | 36.5 / 34.3 |
| Re (ohm) | 2+2 / 4+4 |
| Impedance (ohm) | 1.8+1.8 / 3.6+3.6 |
| Qts | 0.49 / 0.51 |
| BL | 18.5 / 21.5 |
| Fs (Hz) | 35 / 38 |
| SPL (dB) | 88 / 88 |
This specified sensitivity is not directly connected with the sound pressure in the vehicle and therefore should not be used as the sole indicator for comparison with other speakers.
