AUDIO / Subwoofers
12 INCH · 600 W RMS / 1,200 W MAX

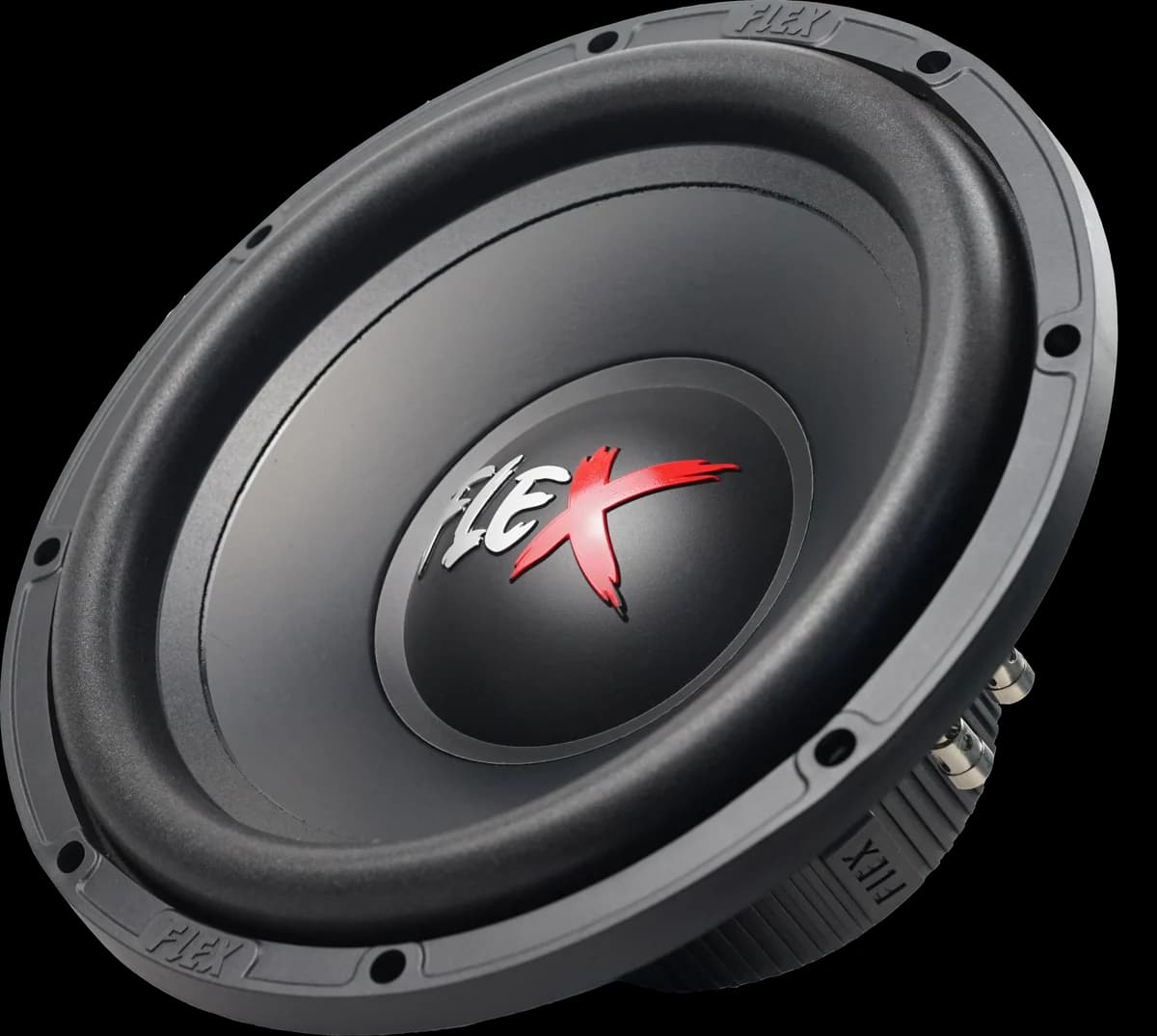

The FX-12 600 D4 is a 12-inch subwoofer rated at 600 W RMS and 1,200 W max — strong, deep bass for daily drivers and first builds.
Shipping and taxes confirmed before payment. No charge when you submit an order request.
ENGINEER YOUR SOUND
The FX-12 600 D4 is a 12-inch subwoofer rated at 600 W RMS and 1,200 W max — strong, deep bass for daily drivers and first builds.

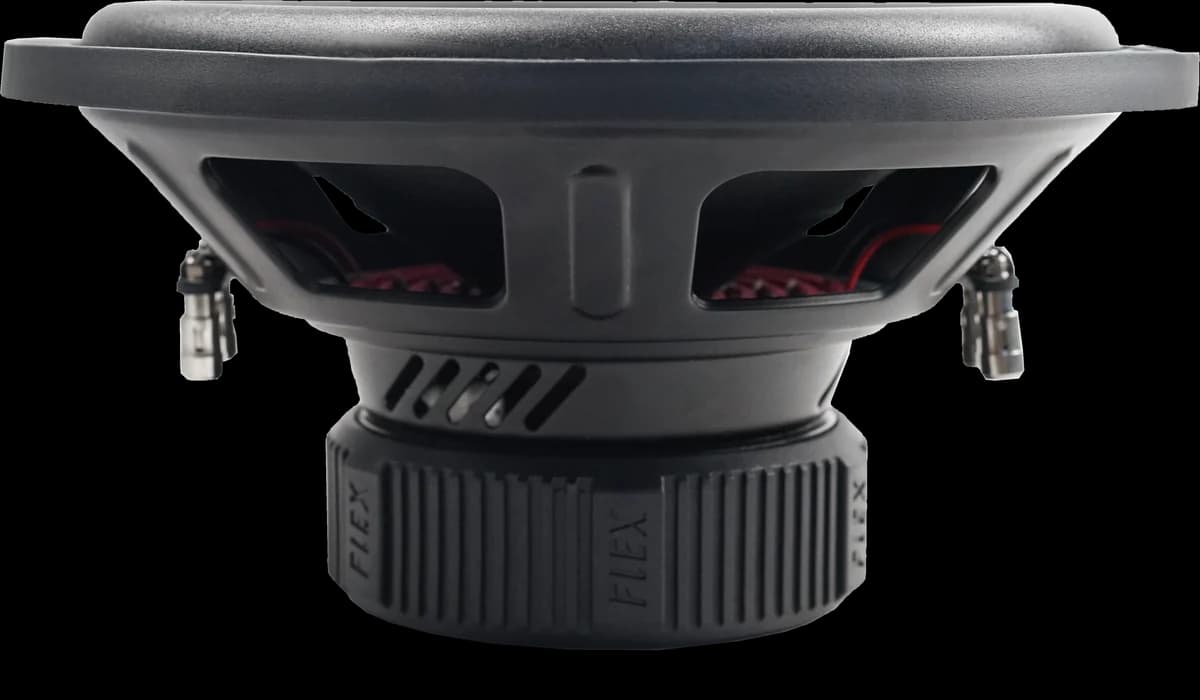

A 2-inch dual voice coil, 15 mm Xmax, pressed-paper cone, foam surround and stamped-steel frame deliver real excursion. Wire the dual 4-ohm coils to about 2 ohms (parallel) or 8 ohms (series) to suit your amplifier.
Designed and engineered in the USA by FLEX AUDIO · One-year warranty on all FLEX AUDIO products.
Need more details? Ask | Model | FX-12 600 D4 |
|---|---|
| Cone Material | Pressed paper |
| Surround Material | Foam |
| Magnet Type | Ferrite |
| Frame Material | Stamped steel |
| Power RMS (Watt) | 600 |
| Power MAX (Watt) | 1200 |
| Size (inch) | 12 |
| Voice Coil Wire | CCAW |
| Voice Coil Size (inch) | 2 |
| Xmax (mm) | 15 |
| Vas (L) | 27.6 |
| Re (ohm) | 3.6 + 3.6 |
| Impedance (ohm) | 4 + 4 |
| Qts | 0.48 |
| BL | 20.5 |
| Fs (Hz) | 38 |
| SPL (dB) | 87 |
No additional technical diagrams are published for this model. Explore the product gallery above.
GOOD TO KNOW
It is rated at 600 W RMS and 1,200 W max.
The FX-12 800 D4 handles more power (800 W vs 600 W RMS) and uses a larger 2.5-inch voice coil; the FX-12 600 D4 has a 2-inch voice coil and slightly more Xmax (15 mm vs 14 mm).
Yes. FLEX AUDIO provides a one-year warranty on all of its products. Keep your order confirmation and contact the team for warranty support.
